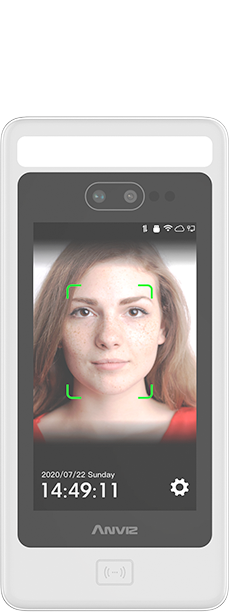

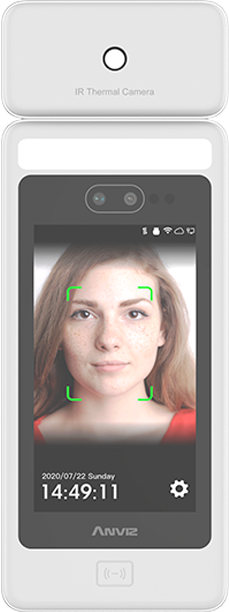

Anviz FaceDeep 5 IRT - AI Based Smart Face Recognition Terminal in Bangladesh

The Anviz FaceDeep 5 IRT delivers fast, accurate and safe Time & Attendance and Access Control using facial recognition, temperature control & optional RFID.This device is an Artificial Intelligence (AI) based contactless facial recognition system with an infrared thermal camera The Anviz FaceDeep 5 IRT is a new AI-based facial recognition and temperature screening terminal equipped with a dual-core Linux-based CPU and the latest BioNANO deep learning algorithm. The device supports up to 5,000 facial templates, and can authenticate users at a distance of less than 100ms using new facial template learning. FaceDeep 5 IRT is a new AI-based face recognition and temperature screening terminal equipped with a dual-core Linux-based CPU and the latest BioNANO deep learning algorithm.

Anviz FaceDeep 5 AI Key Features:

• 1Ghz Linux Based Processor
• Max 50,000 Users, 50,000 Records
• Interface: TCP/IP, RS232,Wi-Fi
• Dual Core Linux Based 1Ghz CPU with
• Enhanced AI Computing Power
• 125 KHz EM, 13.56 MHz: MiFARE, DESFire
• -10 celsius (14 degrees fahrenheit) - 50 degrees celsius (122 degrees fahrenheit)
• Recognition Distance: Max 2m (78.7inch)
• Recognition Speed: <300ms
• Face, Password, RFID Card
• IPS Full Viewing Screen : Angle 178°
• IP65
• DC12V 3A

Specifications
Model	FaceDeep 5	FaceDeep 5 IRT
Capacity
Max.User	50,000
Max.Card	50,000
Max.Log	100,000
Interface
Communication	TCP/IP, RS232, Wi-Fi
I/O	Relay Output, Wiegand Output, Door Sensor, Switch
Feature
Identification	Face, Password, RFID Card
Identification Speed	<300ms
Protection	IP65
Embedded Webserver	Support
Multi-languages Support	Support
Software	CrossChex
Hardware
CPU	Dual Core Linux Based 1Ghz CPU with Enhanced AI Computing Power
Cameras	Infrared Light Camera*1, Visible Light Camera*1
Dimensions{W x H x D)	88*190*16 mm (3.465*7.48*0.629 inch)	88*236*16 mm (3.465*9.29*0.629 inch)
Infrared Thermal Temperature Module	—	Temperature Range: -10~50 °C (14~122 °F) Detection Distance: 30~100 Cm Accuracy: ±0.3 °C (0.54 °F)
LCD	5" IPS LED Touch Screen
Camera Angle Range for Verification	74.38°(Visual),67.57°(Infrared)
Identification Distance	< 2m (78.7 inch)
RFID Card	Supported with duel frequency RFID cards, 125KHz EM & 13.56MHz Mifare,DESFire
Humidity	20% to 90%
Operating Temperature	-30 °C (-22 °F)- 60 °C (140 °F)
Operating Voltage	DC12V 3A
